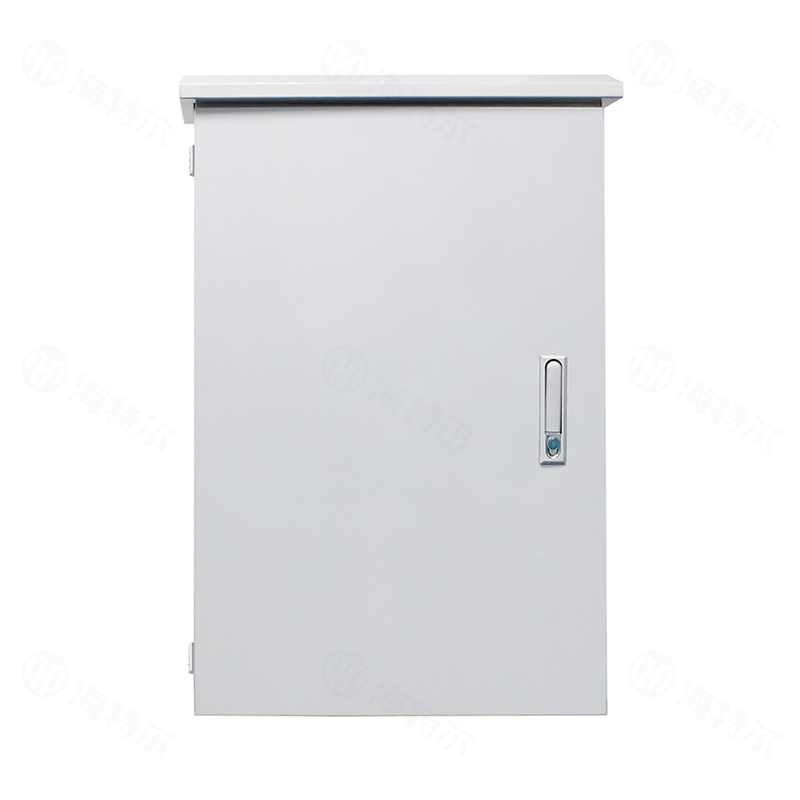

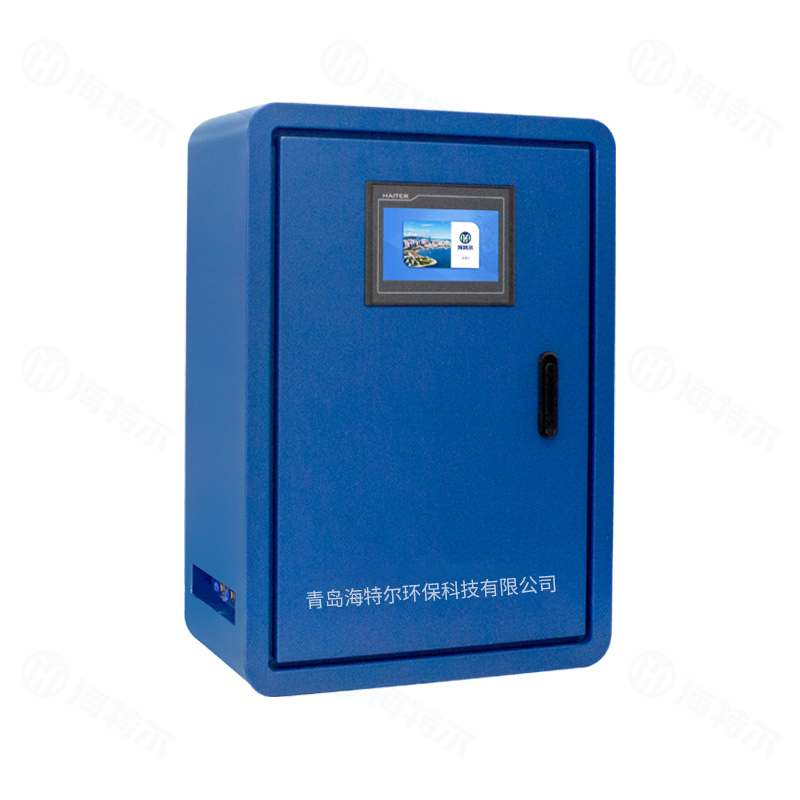

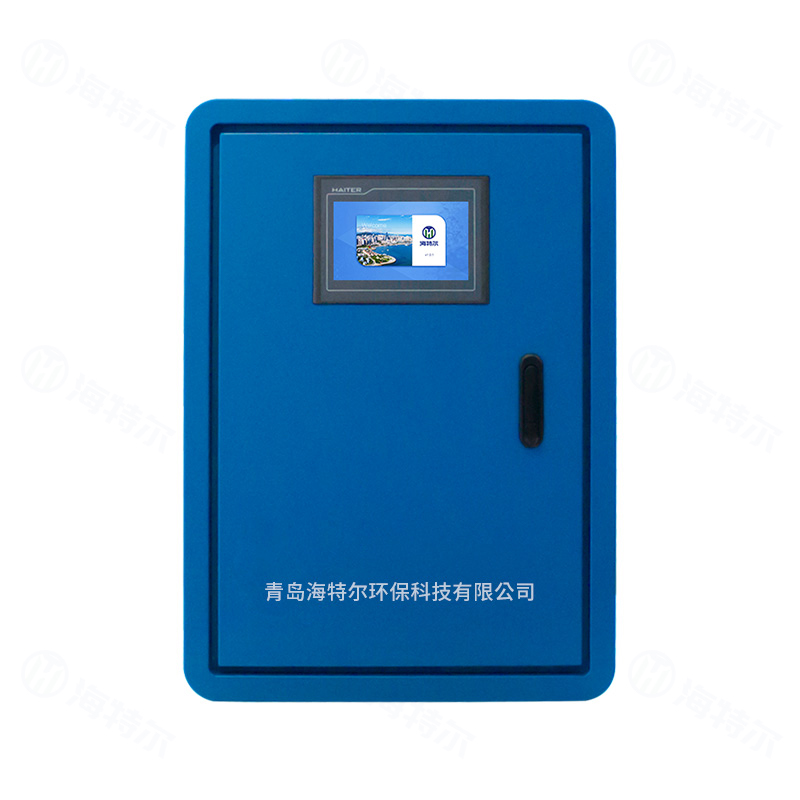

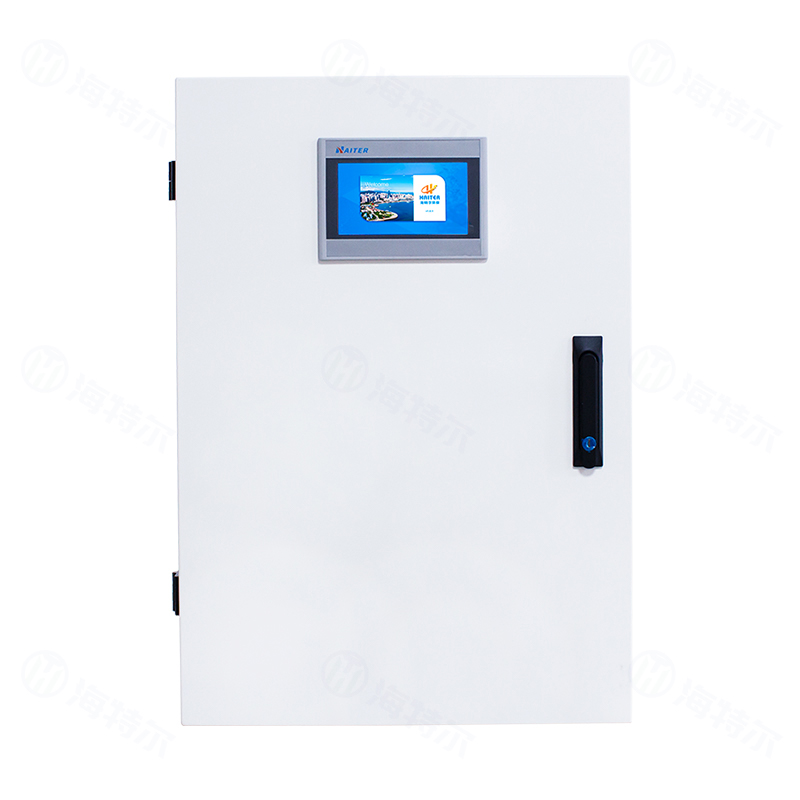

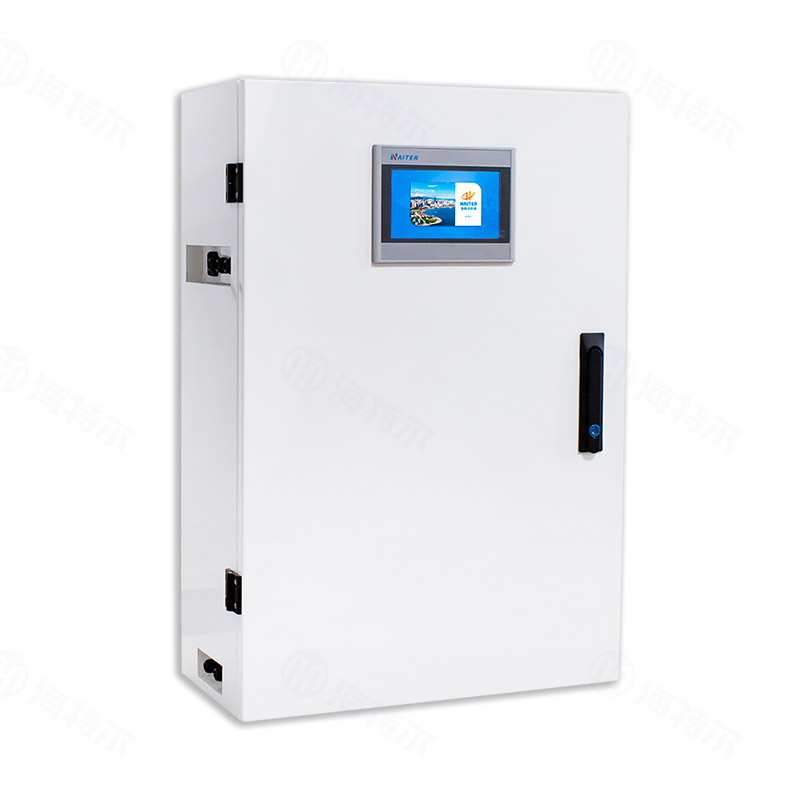

Wall-mounted Water Monitor

The multi-parameter online water quality monitor is a device for real-time water quality monitoring. It can continuously and automatically measure and analyze various physical, chemical and biological parameters in water. The equipment integrates multiple water quality monitoring parameters into a single host unit, with centralized display and management realized via a touch screen human-machine interface. The system integrates online water quality analysis, remote data transmission, database management and automatic control functions, greatly improving the application convenience in various water quality monitoring scenarios.
Integrated with modern sensor technology, automatic control technology and IoT communication technology, the device forms a complete all-in-one water quality monitoring system. It enables real-time, continuous and automatic water body monitoring, fully replacing the traditional manual sampling and laboratory analysis method. It effectively solves the problems of delayed monitoring data and high labor costs in water quality supervision.

INTRODUCTION

SPECIFICATIONS

Application:
Online water quality monitoring for secondary water supply, tap water, surface water, groundwater, source water, drinking water and other water bodies.
Product Features:
One system is capable of measuring multiple water quality parameters.
Optional measurement parameters with high accuracy and good repeatability.
Sensors can be freely combined, featuring simple installation and convenient maintenance.
No reagent addition or reagent consumption required.
No secondary pollution and no waste liquid generated.
Automatic electrode compensation within a certain range.
Multiple optional output modes: 4…20mA, RS485, MODBUS-RTU, GPRS and Ethernet port.
Support connection via wireless 4G network card, WiFi and Ethernet.
Real-time remote monitoring via computer and mobile APP query.
Equipped with various remote control functions for online linkage operation of on-site equipment.

Model	HT-1105D
Display	7-inch color touch screen
Communication Interface	RS485
Power Supply	220V AC
Power Consumption	< 50W
Inlet Diameter	8mm (quick-connect fitting)
Drain Diameter	12mm (quick-connect fitting)
Inlet Flow Rate	15L-30 L/h
Inlet Pressure	Max. 0.3 MPa
Operating Environment	Temperature: (0-50) ℃;
Storage Environment	Relative Humidity: ≤85% RH (non-condensing)
Enclosure Material	Cold-rolled steel with plastic coating
Enclosure Dimensions	700mm × 500mm × 250mm (H × W × D)
