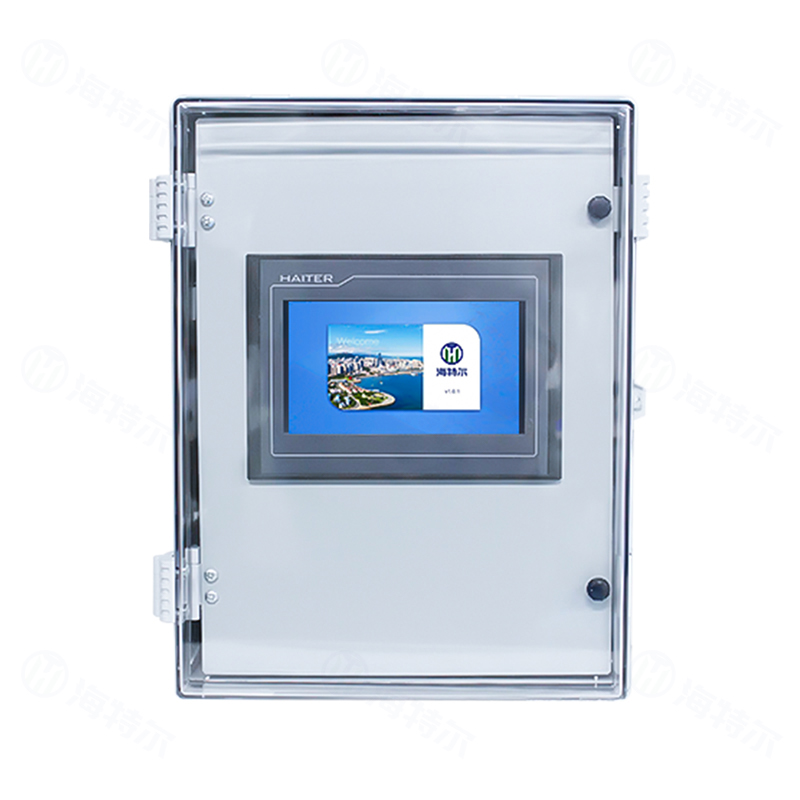

Aquaculture Water Monitor

The multi-parameter online water quality monitor is a device for real-time water quality monitoring, which can continuously and automatically measure and analyze various physical, chemical and biological parameters in water.
The equipment integrates multiple water quality monitoring parameters into a single main unit, with centralized display and management realized via a touchscreen human-machine interface. The system integrates online water quality analysis, remote data transmission, database management, automatic control and other functions, greatly improving the application convenience in various water quality monitoring scenarios.
This device integrates modern sensor technology, automatic control technology and IoT communication technology to form a complete all-in-one water quality monitoring system. It enables real-time, continuous and automatic water quality monitoring, fully replacing the traditional manual sampling and laboratory analysis methods. It effectively solves the problems of delayed water quality monitoring data and high labor costs.

INTRODUCTION

SPECIFICATIONS

Applications:
Aquaculture, fisheries, online water quality monitoring of tap water, surface water, groundwater, source water, drinking water, river water, river channels, oceans, etc.

Product Features:
• One system capable of measuring multiple water quality parameters
• Optional measurement parameters with high accuracy and good repeatability
• Sensors can be freely combined; easy installation and convenient maintenance
• No reagents required, no reagent consumption
• No secondary pollution, no waste liquid
• Automatic electrode compensation within a certain range
• Multiple output options available (4–20 mA, RS 485 MODBUS-RTU, GPRS, Ethernet port)
• Remote PC monitoring and real-time query via mobile APP achievable through 4G wireless network, WiFi, or Ethernet connection
• Can be equipped with various remote control functions for integrated operation of on-site equipment

Model	HT-1105B
Display	7-inch color touch screen
Communication Interface	RS485
Power Supply	220V AC
Power Consumption	< 50W
Operating Environment	Temperature: (0-50) ℃;
Storage Environment	Relative Humidity: ≤85% RH (non-condensing)
Enclosure Dimensions	400×300×170mm (H×W×D)
Enclosure Material	PE
