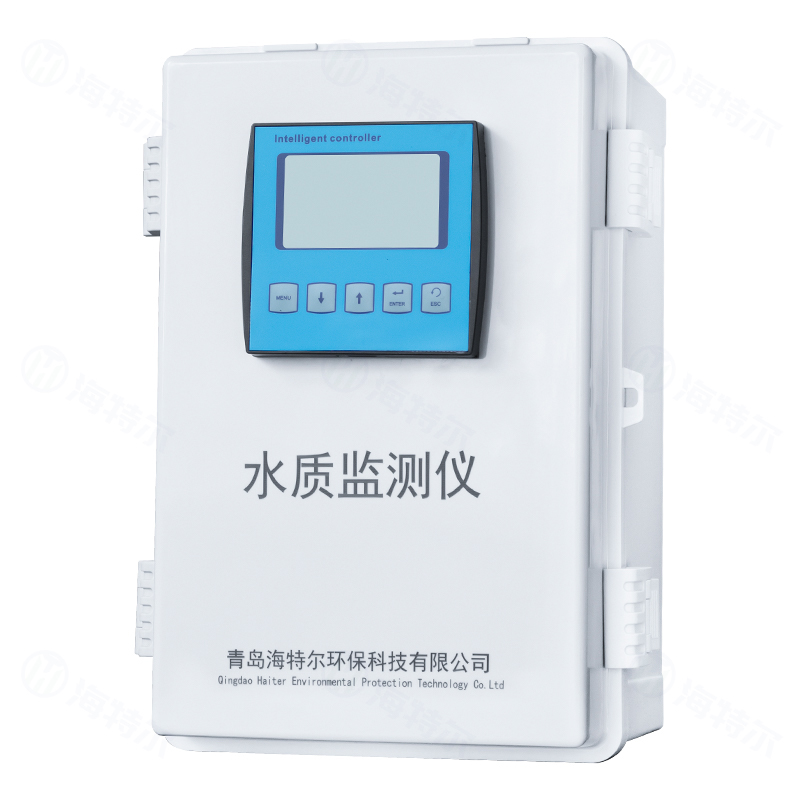

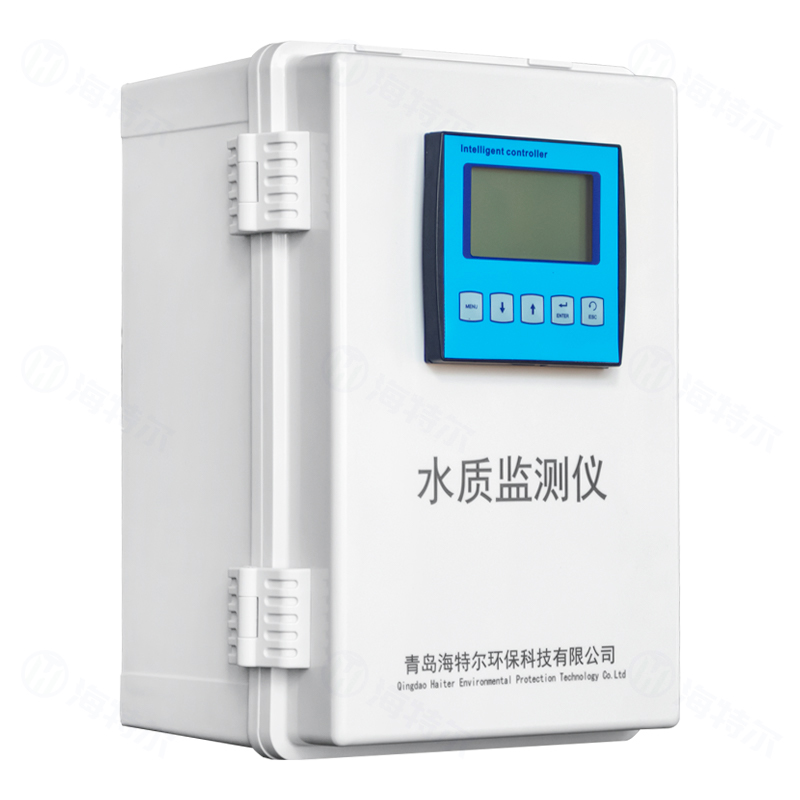

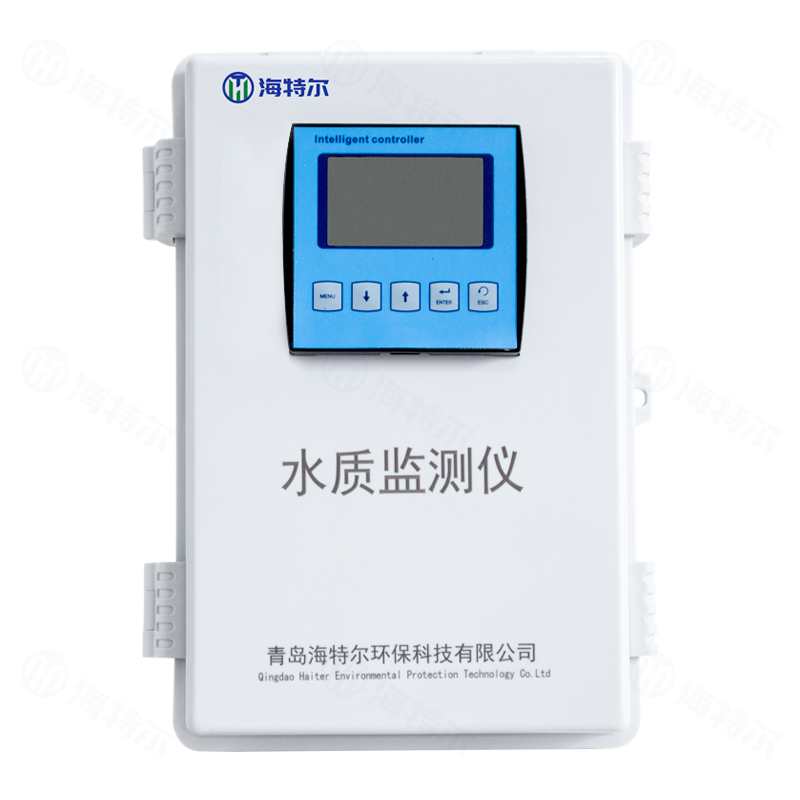

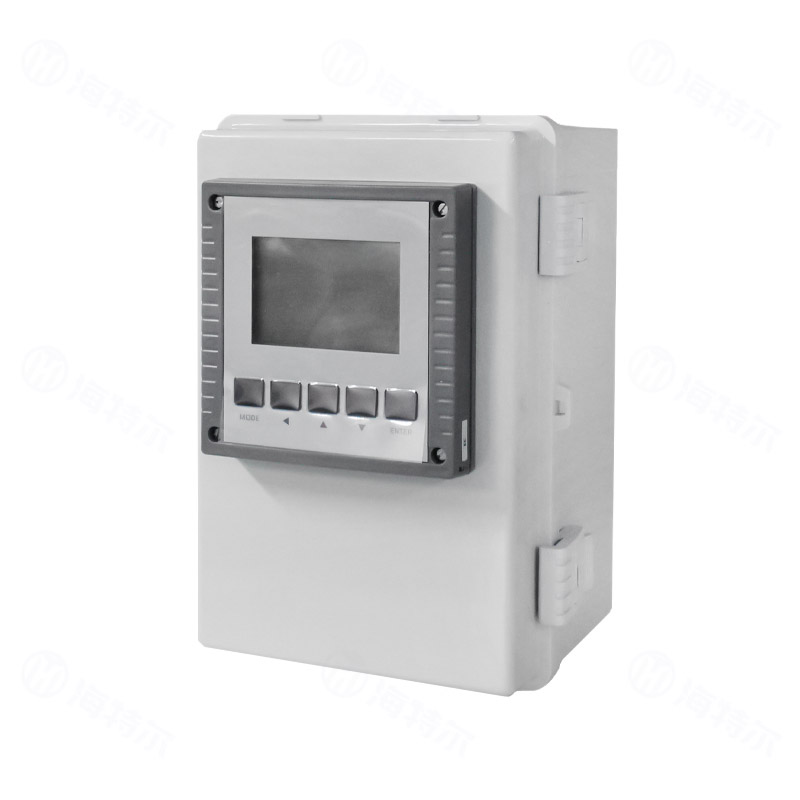

Online Water Quality Monitor

The hardware of the water quality analyzer adopts precision electronic components with strong anti-interference performance and features a reliable and stable integrated circuit design. Such components are widely applied in aerospace, automotive, military and high-tech fields. Equipped with simple operation and a fully interactive software instrument system, the device delivers more accurate and stable detection signals. At present, the product has been extensively used in industries including metallurgy, electric power, pharmaceutical, chemical and petroleum, water treatment, and food processing.

INTRODUCTION

SPECIFICATIONS

Applications:
Online water quality monitoring for different water bodies such as tap water, surface water, groundwater, source water, drinking water, river water, river channels, oceans, sewage discharge outlets, aquaculture, secondary water supply, etc.

Product Features:
• Optional measurement parameters with high accuracy and good repeatability
• Sensors can be freely selected; easy installation and convenient maintenance
• No reagents required, no reagent consumption
• No secondary pollution, no waste liquid
• Automatic electrode compensation within a certain range
• Multiple output options available (4–20 mA, RS 485 MODBUS-RTU, GPRS, Ethernet port)
• Remote PC monitoring and real-time query via mobile APP achievable through 4G wireless network, WiFi, or Ethernet connection

Calibration and setting are protected by password
Large backlit dot matrix LCD
Parameters can be set on-site using buttons
High stability, high accuracy; capable of measuring pH, ORP, and temperature
Ultra-strong anti-interference circuit design, suitable for installation in harsh industrial environments with strong interference. Set parameters and calibration data are retained after power loss. Supports manual temperature compensation / automatic temperature compensation for process temperature and calibration temperature. When the temperature electrode fails, it automatically switches from automatic temperature compensation to manual temperature compensation. Online test data verification is supported.
Multiple output options (relay, 4.00~20.00mA, RS485)
Load capacity: 3A 250VAC / 3A 30VDC
RS485: Supports MODBUS-RTU
Operating temperature: 0~65°C
Meter head dimensions: 144*144*120mm (H*W*D) / Weight: 0.6kg
Instrument material: PE
Instrument dimensions: 300x200x170mm (H*W*D)
