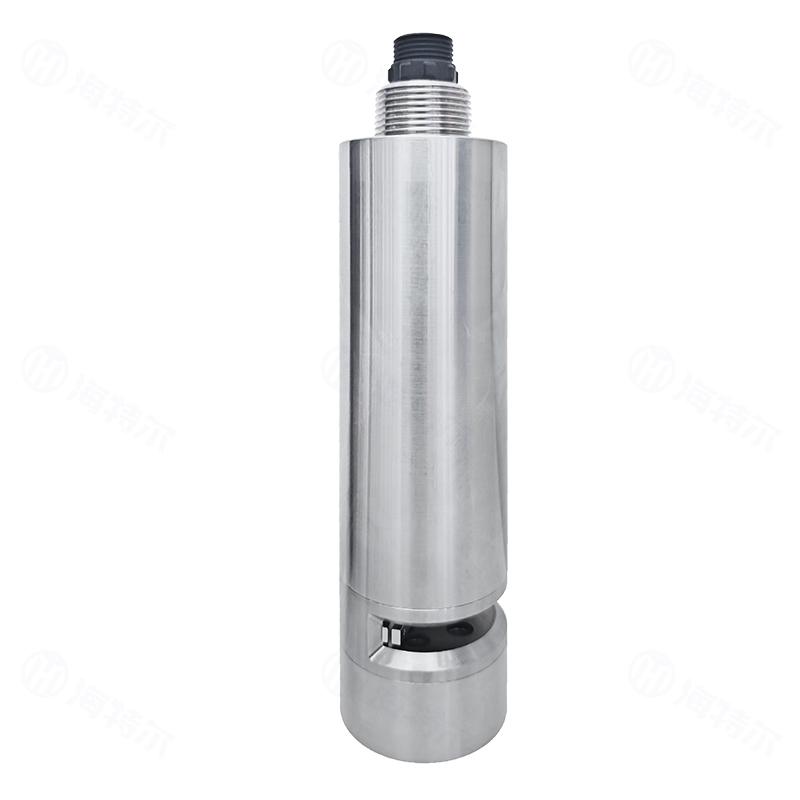

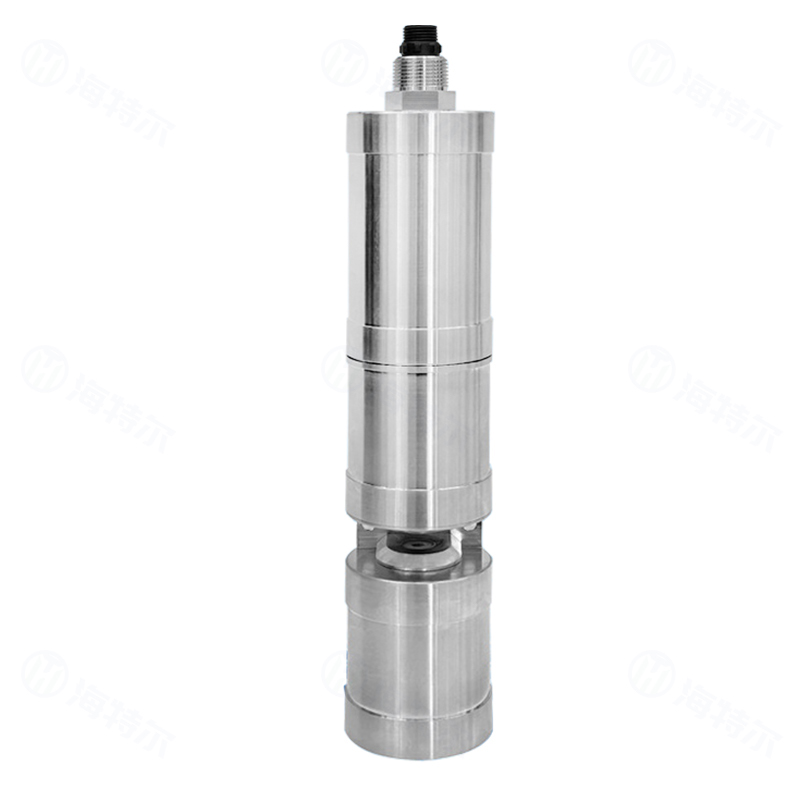

Full-spectrum Water Quality Monitor

The full-spectrum multi-parameter water quality monitor features core advantages of reagent-free operation, multi-parameter simultaneous measurement and low maintenance cost, and is widely applied to surface water, drinking water, sewage, agricultural water and emergency monitoring scenarios.
By capturing the spectral fingerprint of water bodies, full-spectrum technology enables reagent-free and real-time multi-parameter monitoring with extensive applicability. It makes comprehensive water quality inspection efficient and cost-effective, serving as a digital sentinel for building a modern smart water network.
Requiring no chemical reagents and frequent consumable maintenance, the device can simultaneously monitor core water quality parameters online, including COD, ammonia nitrogen, total phosphorus, total nitrogen, turbidity, chlorophyll, pH and dissolved oxygen.
It supports real-time continuous monitoring with high detection accuracy, fast response and low operating cost, and is equipped with functions of remote data transmission and over-standard early warning.
It is widely applicable to rivers, lakes, reservoir water sources, drinking water source protection zones, sewage treatment plants, industrial park sewage outlets, urban black and odorous water bodies, farmland irrigation areas, aquaculture and other water environment scenarios. It provides accurate, stable and reliable digital data support for ecological environment management, drinking water safety guarantee, sewage discharge compliance supervision and long-term water environment governance.

INTRODUCTION

SPECIFICATIONS

Applications:
Online water quality monitoring for surface water, source water, drinking water, wastewater treatment, industrial parks, river channels, oceans, sewage discharge outlets, aquaculture, etc.

Product Features:
• A single system can measure multiple water quality parameters
• Optional measurement parameters with high accuracy and good repeatability
• Sensors can be freely combined; easy installation and convenient maintenance
• No reagents required, no reagent consumption
• No secondary pollution, no waste liquid
• Automatic electrode compensation within a certain range
• Multiple output options available (4–20 mA, RS 485 MODBUS-RTU, GPRS, Ethernet port)
• Remote PC monitoring and real-time query via mobile APP achievable through 4G wireless network, WiFi, or Ethernet connection

Model	HT-808
Display	7-inch color touch screen
Communication Interface	RS485
Power Supply	220V AC
Power Consumption	< 50W
Inlet Diameter	8mm (quick-connect fitting)
Drain Diameter	12mm (quick-connect fitting)
Inlet Flow Rate	15L-30 L/h
Inlet Pressure	Max. 0.3 MPa
Operating Environment	Temperature: (0-50) ℃;
Storage Environment	Relative Humidity: ≤85% RH (non-condensing)
Enclosure Dimensions	1200mm × 450mm × 325mm (H × W × D)
