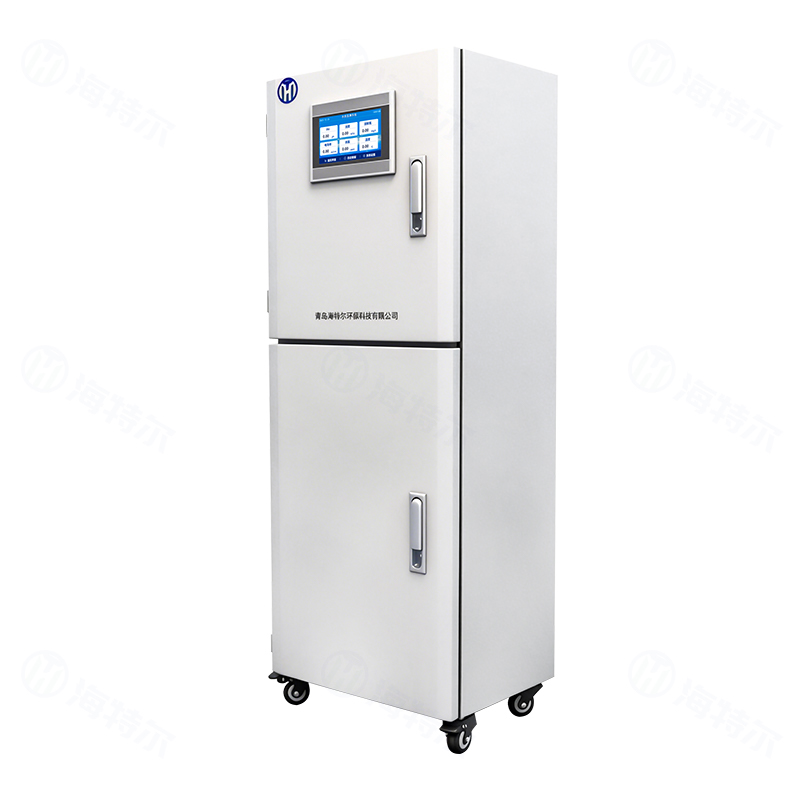

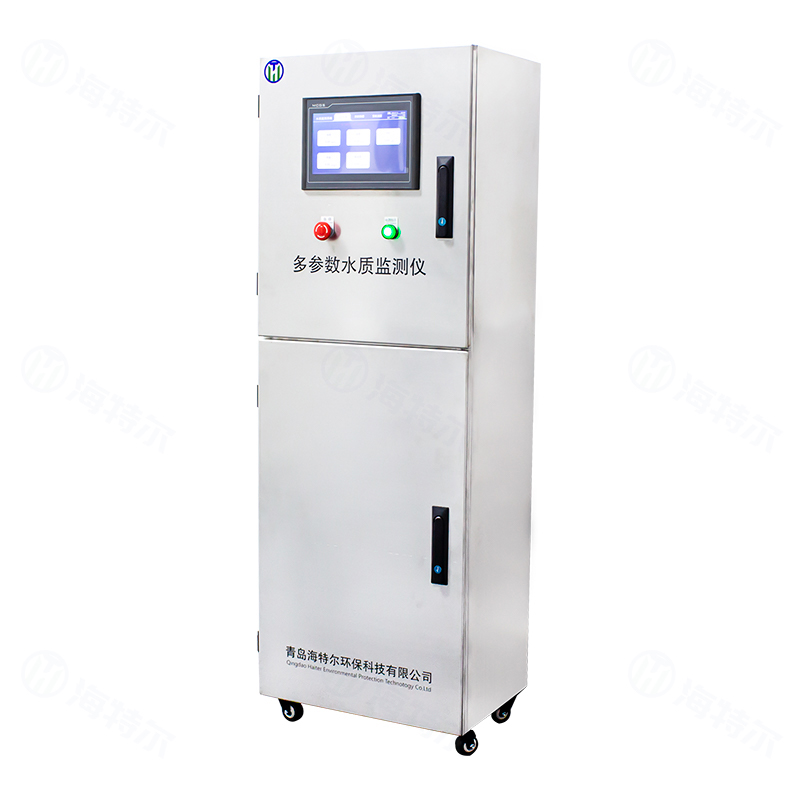

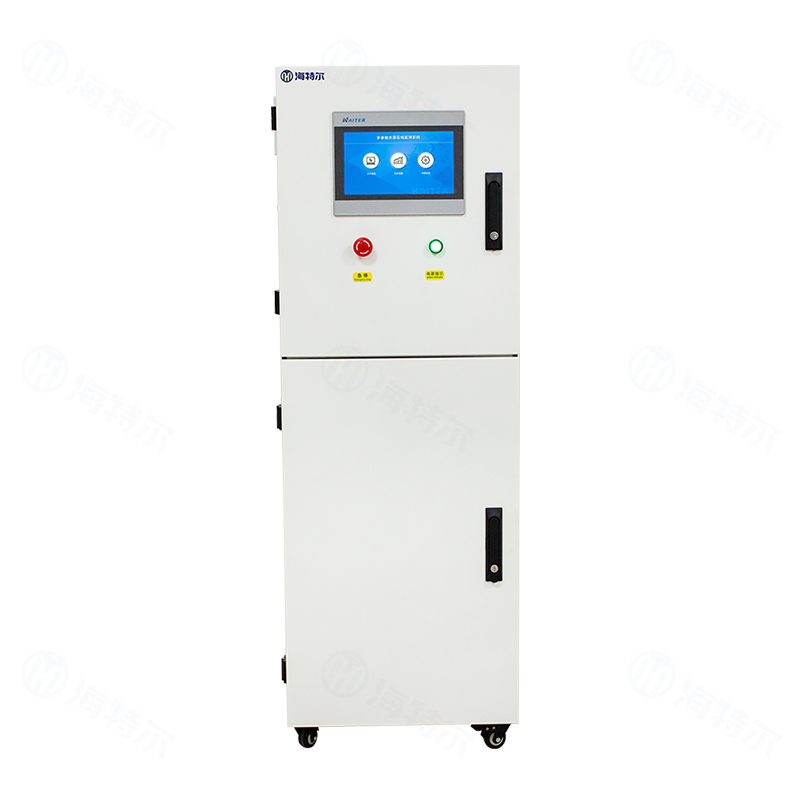

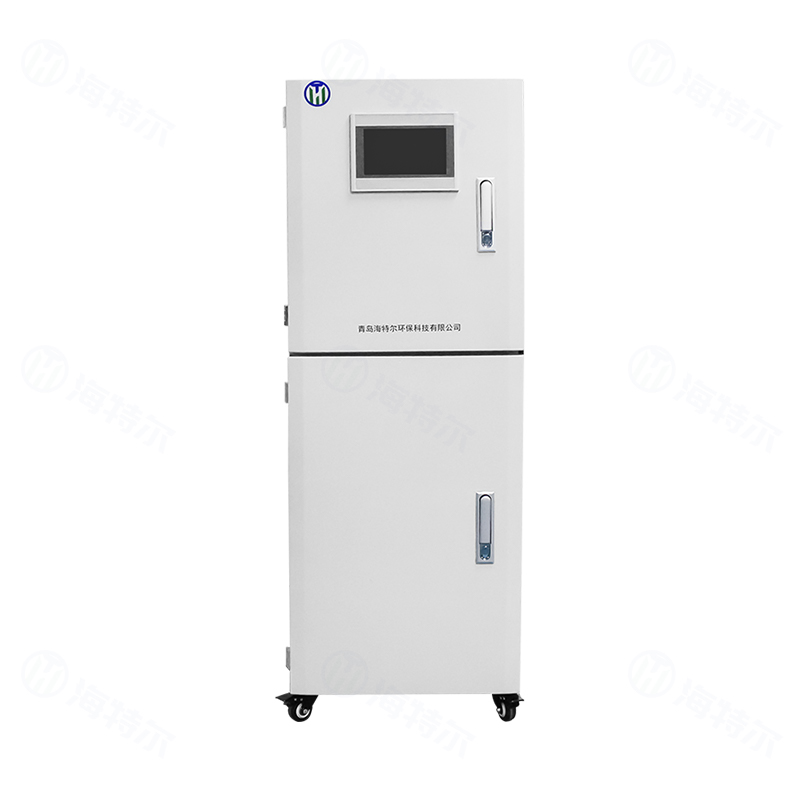

Wastewater Online Monitor

The multi-parameter online water quality monitor is a professional device for real-time water quality supervision. It can continuously and automatically measure and analyze various physical, chemical and biological parameters in water bodies.
The equipment integrates multiple water quality monitoring parameters into a single main unit, with centralized data display and system management realized via a touchscreen human-machine interface. Integrating online water quality analysis, remote data transmission, database management and automatic control functions in one system, it greatly enhances the ease of use in diverse water quality monitoring applications.
Combined with modern sensor technology, automatic control technology and IoT communication technology, the device forms a complete integrated water quality monitoring system. It supports real-time, continuous and automatic water quality monitoring, fully replacing the traditional mode of manual sampling and laboratory analysis. It effectively resolves pain points such as delayed monitoring data and high labor costs in water quality supervision.

INTRODUCTION

SPECIFICATIONS

Applications:
Online water quality monitoring for secondary water supply, tap water, surface water, groundwater, source water, drinking water, etc.

Product Features:
• A single system can measure multiple water quality parameters
• Optional measurement parameters with high accuracy and good repeatability
• Sensors can be freely combined; easy installation and convenient maintenance
• No reagents required, no reagent consumption
• No secondary pollution, no waste liquid
• Automatic electrode compensation within a certain range
• Multiple output options available (4–20 mA, RS 485 MODBUS-RTU, GPRS, Ethernet port)
• Remote PC monitoring and real-time query via mobile APP achievable through 4G wireless network, WiFi, or Ethernet connection
• Can be equipped with various remote control functions for integrated operation of on-site equipment

Model	HT-1105C
Display	10-inch color touch screen
Communication Interface	RS485
Power Supply	220V AC
Power Consumption	< 50W
Inlet Diameter	8mm (quick-connect fitting)
Drain Diameter	12mm (quick-connect fitting)
Inlet Flow Rate	15L-30 L/h
Inlet Pressure	Max. 0.3 MPa
Operating Environment	Temperature: (0-50) ℃;
Storage Environment	Relative Humidity: ≤85% RH (non-condensing)
Enclosure Dimensions	1600x500x450mm (H×W×D)
