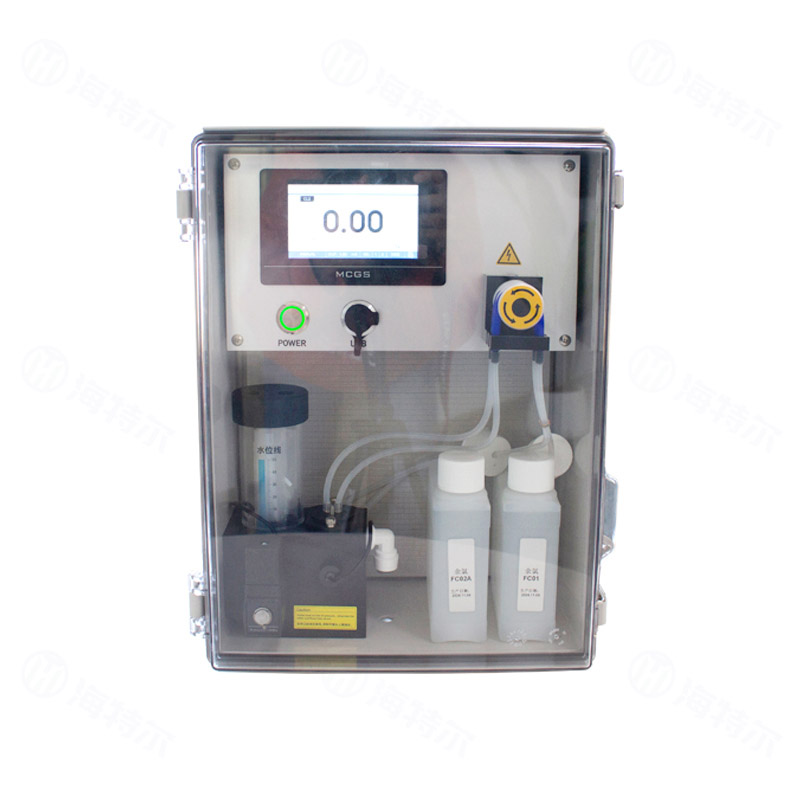

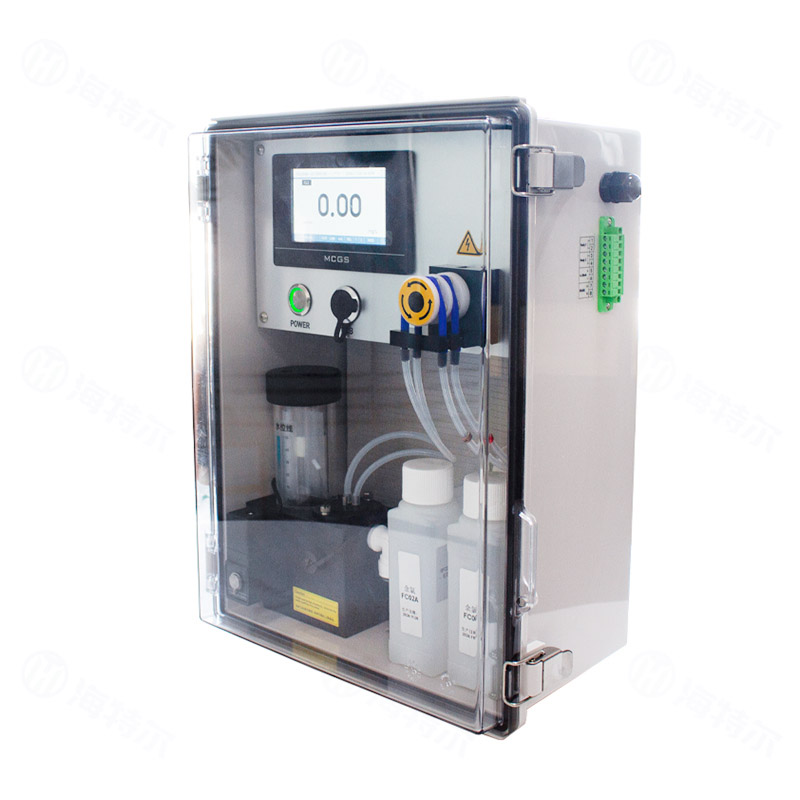

DPD Residual Chlorine Analyzer

This analyzer enables online automatic detection of residual chlorine concentration in water. Adopting the reliable national standard DPD colorimetric method, it automatically adds reagents for colorimetric measurement. It is suitable for monitoring residual chlorine concentration during chlorination disinfection and in drinking water pipe networks.
Measuring Principle
This colorimetric residual chlorine analyzer adopts the DPD colorimetric method to detect residual chlorine concentration. By adding buffer reagents, the pH value of the water sample is adjusted to a specified range. DPD reagent turns magenta in proportion to the residual chlorine concentration, and the color intensity depends on the chlorine content in the water sample.
The DPD residual chlorine water quality analyzer is widely applicable to waterworks, municipal pipe network terminals, secondary water supply tanks, water supply in hotels and buildings, swimming pool and bath water environments, effluent of sewage treatment plants, industrial circulating cooling water and other scenarios. It realizes accurate online monitoring of residual chlorine and total chlorine content, ensuring drinking water quality safety and compliance management of disinfection indicators.

INTRODUCTION

SPECIFICATIONS

Applications:
Suitable for scenarios such as waterworks, end sections of municipal pipe networks, secondary water supply tanks, building water supply, swimming pool and bathhouse water environments, wastewater treatment plant effluent, and industrial circulating cooling water. Precisely monitors residual chlorine and total chlorine content online, ensuring drinking water safety and compliant disinfection control.

Product Features:
· Wide power input, touchscreen design
· DPD colorimetric method for more accurate and stable measurement
· Automatic diagnosis and automatic calibration
· Analysis cycle: 2.5 minutes
· Measurement cycle selectable: 300s~3600s
· Selectable automatic or manual mode
· 4-20mA and RS485 output
· Data storage function, supports USB flash drive export

Measuring Principle	DPD Colorimetric Method
Measuring Range	0-5.00mg/L (ppm)
Resolution	0.01mg/L (ppm)
Accuracy	±1% f.s.
Cycle Time	300-3600s adjustable, default factory setting is 300s
Display	4.3-inch color LCD touch screen display
Language	Chinese/English
Power Supply	110-240VAC, 50/60Hz
Analog Output	4-20mA output, Max. 500Ω
Digital Communication	RS485 Modbus RTU
Alarm Output	2 sets of ON/OFF contacts, independently configurable Hi/Lo alarm points with hysteresis setting, 5A/250VAC, 5A/30VDC
Data Storage	Data storage function, supports USB flash drive export
Operating Conditions	Operating temperature: 0-50℃, humidity: 10-95% non-condensing, flow rate: 1 L/min recommended
