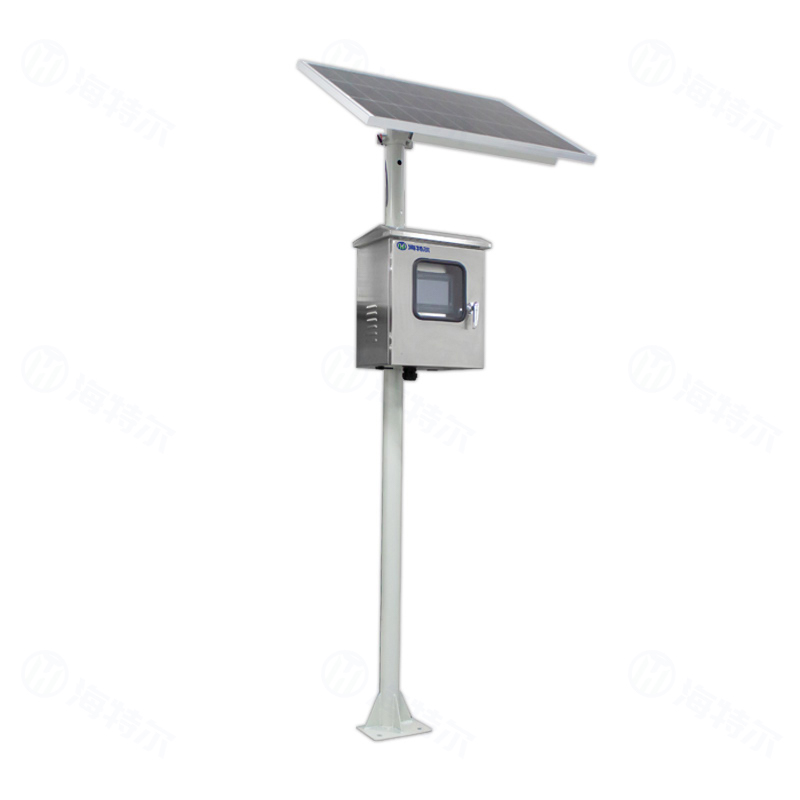

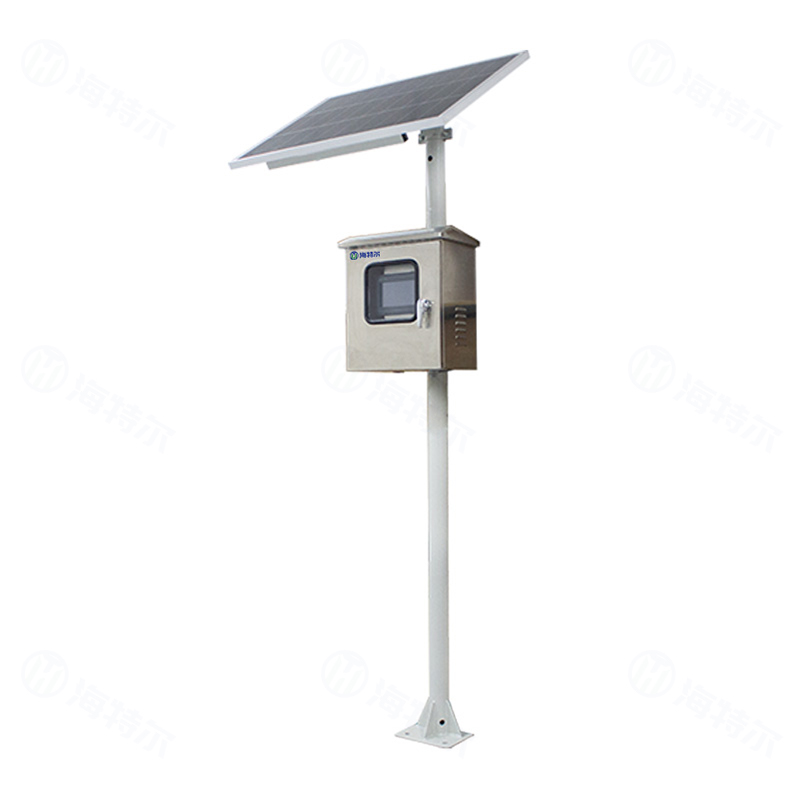

Pole-mounted Water Quality Monitor

The outdoor pole-mounted online water quality monitoring device adopts an integrated floor-standing pole structure, which integrates multi-parameter water quality detection, data acquisition, power supply and data transmission into one unit. It requires no equipment room, features a small footprint, easy installation and excellent outdoor weather resistance, and is capable of all-weather unattended operation. It is suitable for regular online monitoring of various open-air water environment sites in the field.
It can real-time monitor multiple water quality indicators including pH, dissolved oxygen, electrical conductivity, turbidity, ammonia nitrogen, COD, total phosphorus and total nitrogen. It is equipped with functions of automatic sampling, real-time analysis, data storage, and 4G/wireless remote data upload. It also supports automatic early warning for excessive water quality values, remote parameter configuration and equipment self-diagnosis.
The whole machine is rainproof, dustproof, wind-resistant and sun-proof, adapting to complex field environments. It realizes real-time water quality monitoring, pollution source tracing and long-term water environment management.

INTRODUCTION

SPECIFICATIONS

Applications:
Online water quality monitoring for different water bodies such as tap water, surface water, groundwater, source water, drinking water, river water, river channels, oceans, sewage discharge outlets, aquaculture, secondary water supply, etc.

Product Features:
• A single system can measure multiple water quality parameters
• Optional measurement parameters with high accuracy and good repeatability
• Sensors can be freely combined; easy installation and convenient maintenance
• No reagents required, no reagent consumption
• No secondary pollution, no waste liquid
• Automatic electrode compensation within a certain range
• Multiple output options available (4–20 mA, RS 485 MODBUS-RTU, GPRS, Ethernet port)
• Remote PC monitoring and real-time query via mobile APP achievable through 4G wireless network, WiFi, or Ethernet connection
• Can be equipped with various remote control functions for integrated operation of on-site equipment

Model	HT-1105G
Display	7-inch color touch screen
Communication Interface	RS485
Power Supply	220V AC
Power Consumption	< 50W
Operating Environment	Temperature: (0-50) ℃;
Storage Environment	Relative Humidity: ≤85% RH (non-condensing)
Enclosure Dimensions	500×400×250mm (H×W×D)
Pole Height	1.5 meters (customizable)
Enclosure Material	304 stainless steel
