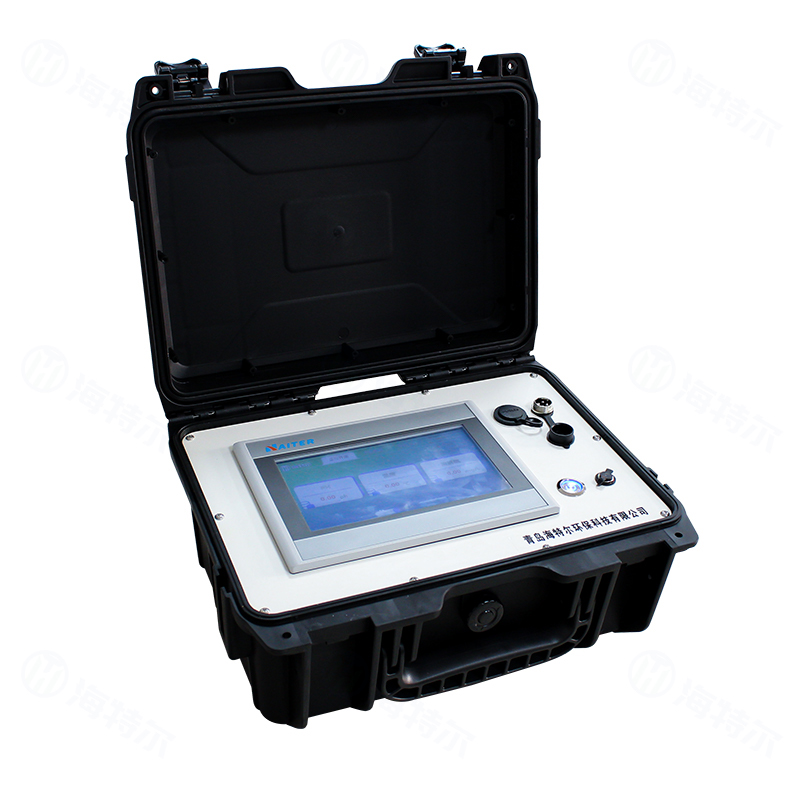

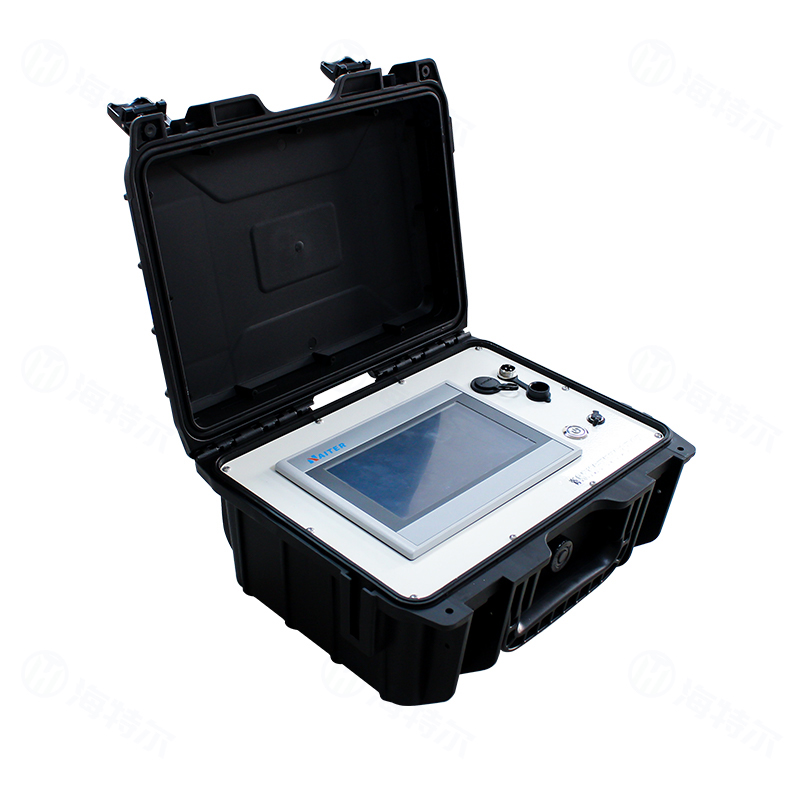

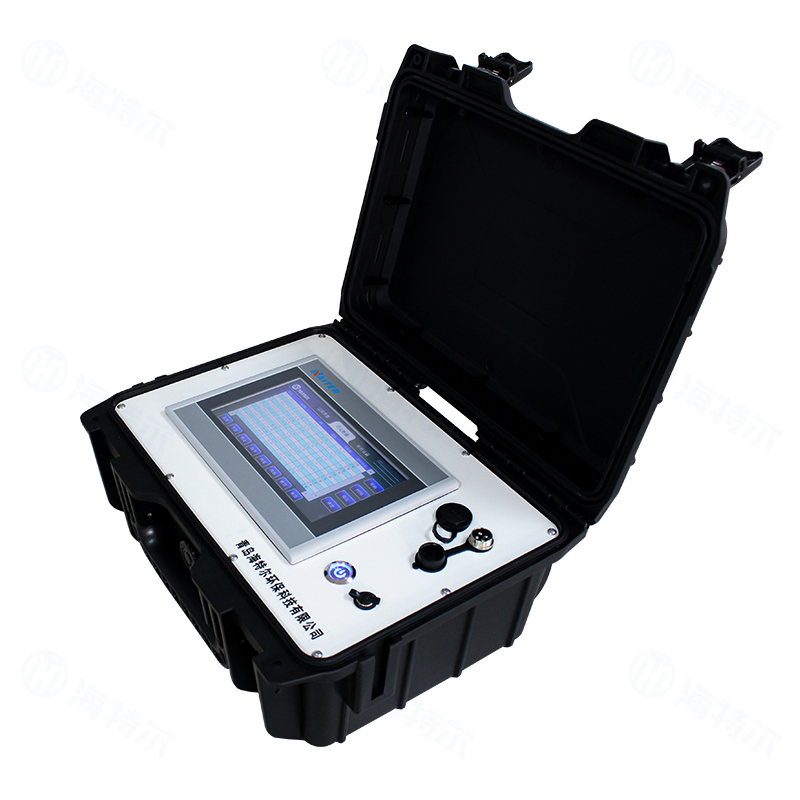

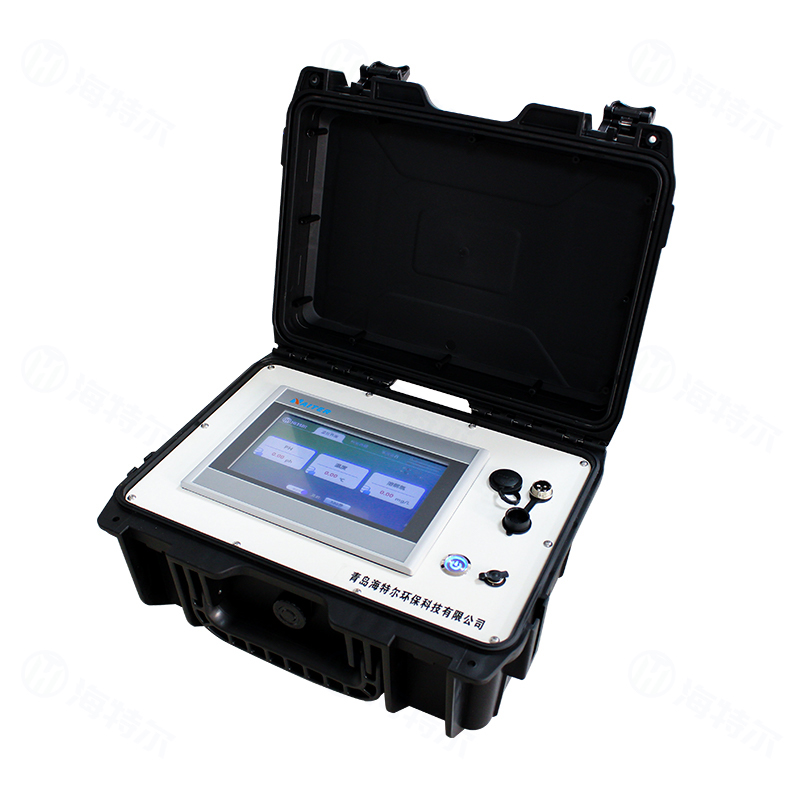

Portable Water Quality Analyzer

Model HT-1100 Portable Multi-parameter Water Quality Detector is an online automatic monitoring system centered on automatic analyzers. It integrates power supply and industrial control modules, and adopts modern automatic monitoring technology, automatic control technology, computer application technology, as well as professional analytical software and communication networks.
It is mainly applied to the monitoring of surface water. Surface water refers to water existing on the earth’s crust surface and exposed to the atmosphere. It is a general term for four types of water bodies: rivers, glaciers, lakes and marshes, also known as terrestrial water.
The main factors causing surface water eutrophication are chemical substances such as nitrogen, phosphorus, organic matter and ammonium nitrogen in water. Therefore, monitoring chemical indicators including total phosphorus, total nitrogen, ammonia nitrogen, CODcr and permanganate index in surface water has become an essential task. Combined with simultaneous monitoring of the conventional five parameters (dissolved oxygen, turbidity, electrical conductivity, water temperature and pH), as well as chlorophyll and blue-green algae, the system can comprehensively reflect the overall water environmental status.

INTRODUCTION

SPECIFICATIONS

Applications:
Online water quality monitoring for different water bodies such as tap water, surface water, groundwater, source water, drinking water, river water, river channels, oceans, sewage discharge outlets, aquaculture, secondary water supply, etc.

Product Features:
• A single system can measure multiple water quality parameters
• Optional measurement parameters with high accuracy and good repeatability
• Sensors can be freely combined; easy installation and convenient maintenance
• No reagents required, no reagent consumption
• No secondary pollution, no waste liquid
• Automatic electrode compensation within a certain range
• Multiple output options available (4–20 mA, RS 485 MODBUS-RTU, GPRS, Ethernet port)
• Remote PC monitoring and real-time query via mobile APP achievable through 4G wireless network, WiFi, or Ethernet connection
• Can be equipped with various remote control functions for integrated operation of on-site equipment

Model	HT-1100
Display	7-inch color touch screen
Communication Interface	RS485
Power Supply	220V AC (12-24V DC optional)
Power Consumption	< 50W
Operating Environment	Temperature: (0-50) ℃;
Storage Environment	Relative Humidity: ≤85% RH (non-condensing)
